Computer Org. & Architecture (CS-404) - Unit 6 Short Notes

1. Characteristics of Multiprocessor

[!IMPORTANT]

A multiprocessor system is a computer with two or more processors that share a common physical memory and can execute multiple processes simultaneously.

Basic Characteristics

• Each processor in a multiprocessor system operates under a single operating system and shares peripherals.

• All processors are connected via an interconnection network that enables communication and resource sharing.

• They can work on the same or different tasks concurrently, improving throughput and system reliability.

Advantages

1. Increased Performance: Parallel execution of programs boosts computational speed.

2. High Reliability: If one processor fails, others can continue, improving fault tolerance.

3. Resource Sharing: Processors share expensive resources (memory, I/O), reducing cost.

4. Modular Expansion: System can be scaled by adding more processors.

Disadvantages

1. Complexity: Hardware and software design is more complex due to synchronization.

2. Cost: More hardware components raise costs.

3. Contention: Shared memory and buses can cause bottlenecks.

Classification of Multiprocessors

2. Structure of Multiprocessor – Interprocessor Arbitration

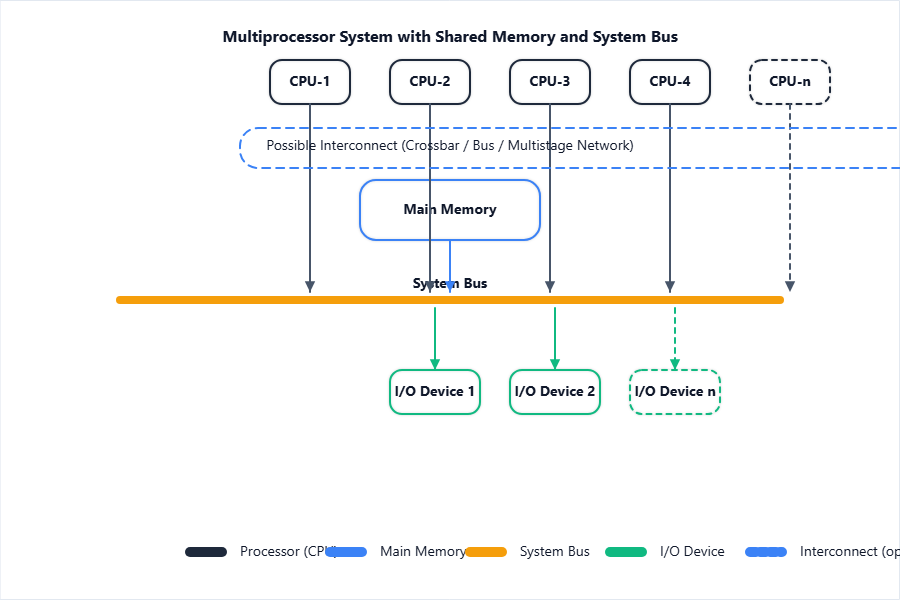

Generic Block Diagram of Multiprocessor System

• The block diagram shows multiple processors sharing memory and I/O through a common bus/interconnection.

Centralized vs. Distributed Structures

• Centralized: All processors share a single memory module controlled centrally. Simplifies communication but can have bottlenecks.

• Distributed: Each processor has its own local memory; interconnection handles data exchange. Improves scalability and reduces contention.

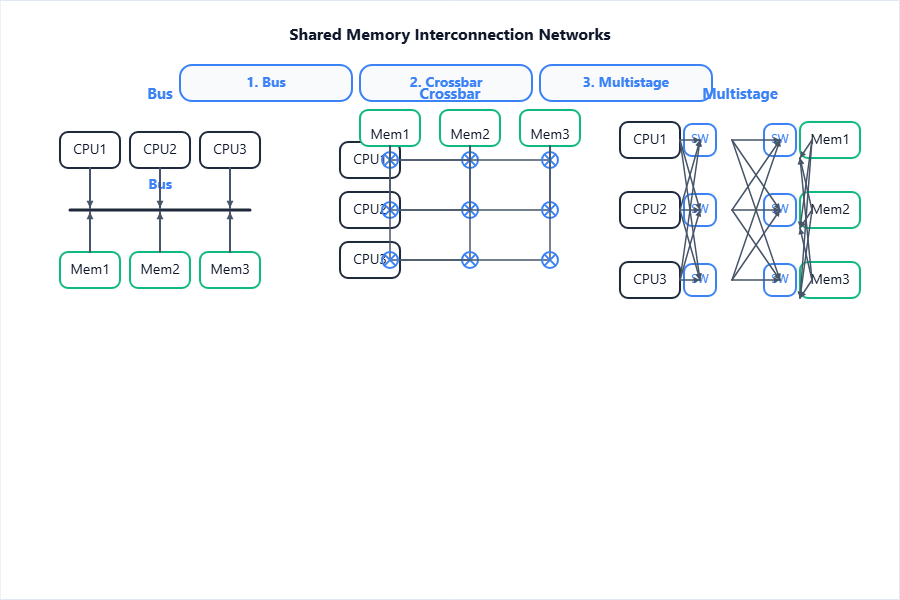

Interconnection Networks

• Shows different multiplexing techniques for processor–memory communication.

Interprocessor Arbitration Mechanisms

Purpose: Resolve which processor gets control of shared resources when multiple want access.

• Priority: Each processor is assigned a fixed/hierarchical priority level.

• Polling: A controller sequentially checks processors for requests.

• Daisy-Chaining: Priority given based on physical order of processors on the chain.

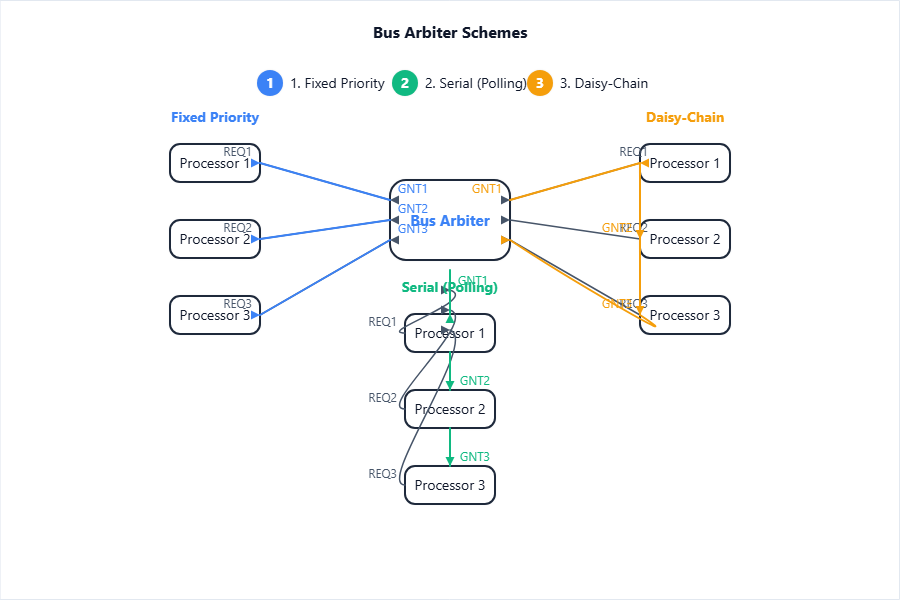

Arbitration Logic

• Diagram shows how bus arbitration logic resolves access requests among CPUs.

3. Inter-Processor Communication and Synchronization

Need for Communication and Synchronization

[!IMPORTANT]

Inter-processor communication and synchronization are required to coordinate tasks, share data, avoid conflicts, and ensure correct sequence of parallel operations among processors.

• Enables processors to exchange data/results and prevent inconsistent or unpredictable outcomes.

Methods of Inter-Processor Communication

Synchronization Techniques

Semaphore

[!IMPORTANT]

A semaphore is an integer variable used to signal and control access to shared resources among processes.

• Two atomic operations: wait (P) and signal (V)

Pseudocode:

wait(S):

  while S <= 0:

    // wait

  S = S - 1

signal(S):

  S = S + 1

Mutex and Spinlocks

• Mutex: A mutual exclusion object allowing only one process at a time to access a resource.

• Spinlock: Process repeatedly checks a lock variable (busy-wait) until it is available.

Barrier

[!IMPORTANT]

A barrier is a synchronization point where all processes wait until every process reaches the barrier, and only then proceed.

• Used in parallel computations to synchronize phases.

Race Conditions and Deadlocks

• Race Conditions: When system behavior depends on the sequence/timing of multiple threads/processes.

• Deadlocks: When two or more processors wait indefinitely for resources held by each other.

Hardware Support for Synchronization

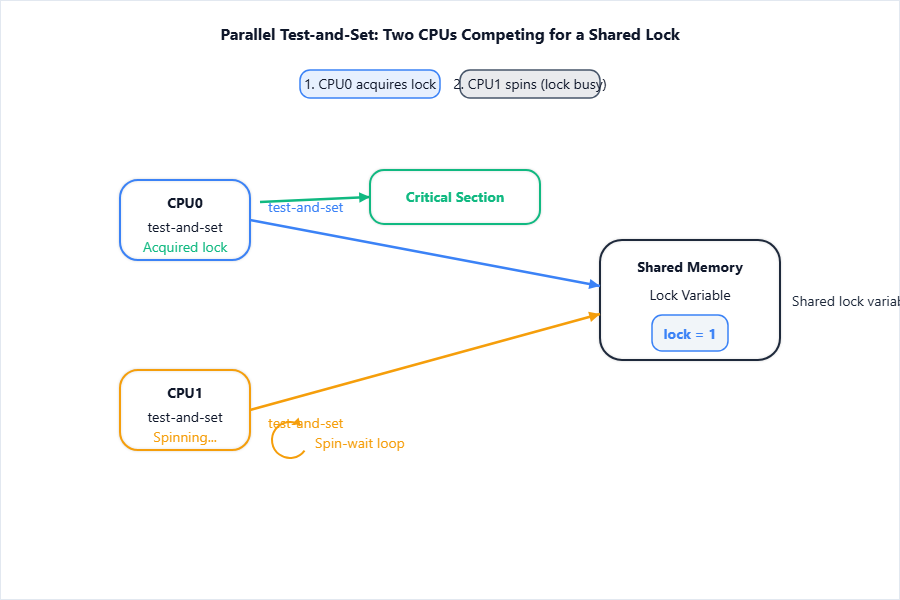

Test-and-Set Instruction

• Atomic operation: tests a variable and sets it, in one indivisible action

• Used to implement locks/mutexes

Algorithm: Test-and-Set Lock

lock = 0 // initialize

function acquire_lock():

  while test_and_set(lock) == 1:

    // busy-wait (spin)

function release_lock():

  lock = 0

• Illustrates hardware synchronization of critical sections.

[!TIP]

Always mention Test-and-Set as a practical atomic synchronization technique!

4. Memory in Multiprocessor System

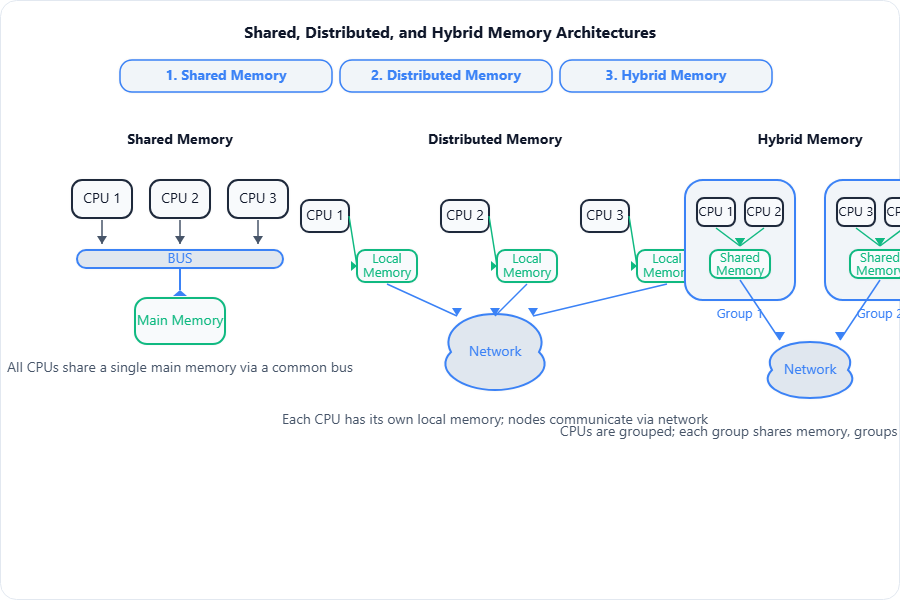

Memory Organization in Multiprocessors

• Shows the major memory layouts for multiprocessors.

Cache Coherence Problem and Solutions

• Cache Coherence Problem: Ensures uniformity of shared data in caches so all processors see latest values.

  • E.g., when one CPU updates data, others’ caches must reflect the change.

MESI Protocol Overview

• Four states for cache block: Modified, Exclusive, Shared, Invalid.

• Ensures only one processor can modify a block, others get notified to invalidate or update their copy.

Bus Snooping

[!IMPORTANT]

Bus snooping is a mechanism where all cache controllers monitor (snoop) bus transactions to keep their cached data coherent.

• Enables updates/invalidations in real time as processors write to shared memory.

Memory Consistency Models

[!IMPORTANT]

A memory consistency model defines the order and visibility of memory operations (reads/writes) in a multiprocessor.

• Strict Consistency: All memory ops instantly visible to all.

• Sequential Consistency: Results as if operations occurred in some sequential order.

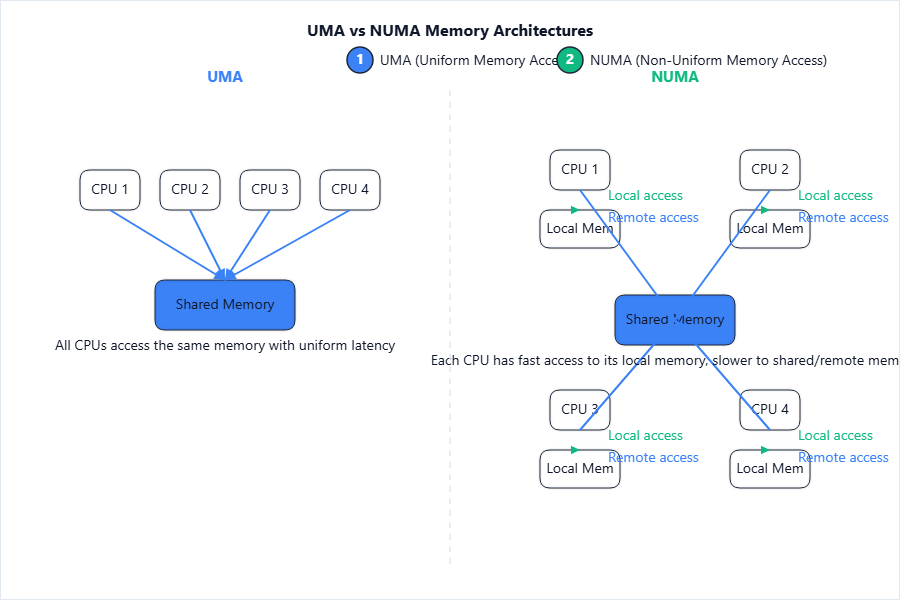

NUMA vs. UMA Architectures

• Illustrates the difference in processor-to-memory connectivity and latency.

Memory Mapping Strategies

• Interleaved Mapping: Addresses distributed for parallel access speed-up.

• Static/Dynamic Partitioning: Predefined or on-the-fly allocation of memory blocks to processors.

5. Concept of Pipelining

Definition and Advantages

[!IMPORTANT]

Pipelining is a technique where multiple instruction stages are overlapped in execution, improving CPU instruction throughput.

• Each stage performs a part of instruction; different instructions processed concurrently at different stages.

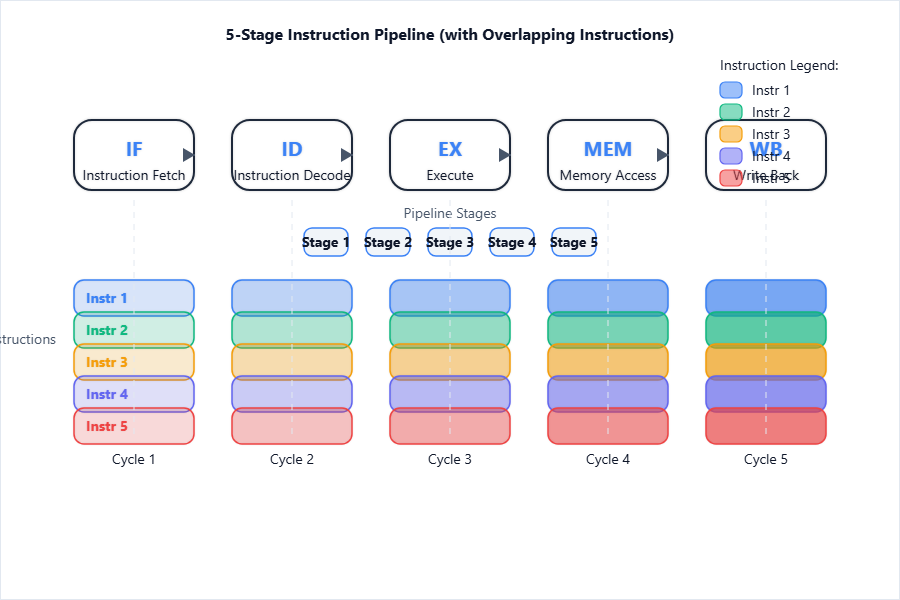

Pipeline Stages

Typical stages:

1. Instruction Fetch (IF)

2. Instruction Decode (ID)

3. Operand Fetch (OF)

4. Execute (EX)

5. Write Back (WB)

• Pipeline diagram visualizes parallel instruction processing.

Pipeline Hazards

Data Hazard Resolution: Forwarding, Stalling

• Forwarding: Data is routed directly from output of one stage to input of another to avoid waiting.

• Stalling: Pipeline is paused (bubbles inserted) until data is available.

Pipeline Performance Metrics

Speedup Formula:

Let:

• $k$ = number of pipeline stages

• $n$ = number of instructions

Time for non-pipelined = $n \cdot k \cdot t$

Time for pipelined = $(k + n - 1)t$

$$ \text{Speedup} = \frac{\text{Non-pipelined time}}{\text{Pipelined time}} = \frac{n \cdot k \cdot t}{(k + n - 1)t} $$

For large $n$,

$$ \text{Speedup} \approx k $$

Numerical Example:

A pipeline has 5 stages ($k = 5$). Find speedup for 20 instructions ($n = 20$).

Step 1: Non-pipelined time = $20 \times 5 \times t = 100t$

Step 2: Pipelined time = $(5 + 20 - 1)t = 24t$

$$ \boxed{\text{Speedup} = \frac{100t}{24t} = 4.17} $$

[!TIP]

State the speedup formula and show all steps in numericals for full marks!

6. Vector Processing

Definition & Basic Concept

[!IMPORTANT]

Vector processing is the simultaneous execution of one operation on multiple data (vector) elements by a vector processor.

• Speeds up tasks like scientific computing, graphics, and simulations.

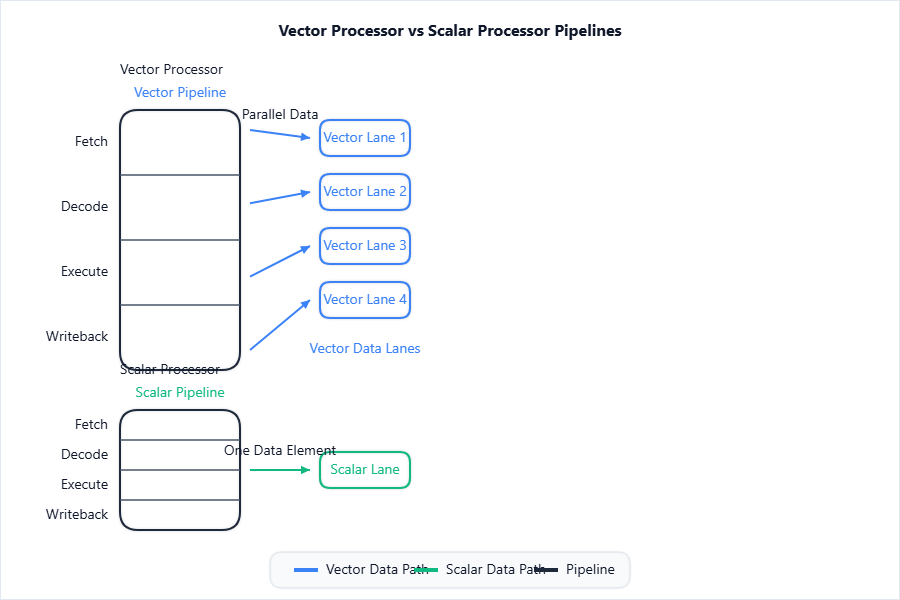

Vector Processors vs. Scalar Processors

• Highlights parallel vs sequential data execution.

Vector Instructions and Their Execution

• Vector Add: V1 = V2 + V3 adds whole vectors (arrays) in a single instruction.

• Execution: Uses vector registers and data pipelines for high throughput.

Applications of Vector Processing

• Weather forecasting, scientific simulations, deep learning, image/video processing.

7. Array Processing

Definition

[!IMPORTANT]

Array processing uses multiple processing elements organized in an array to perform the same operation simultaneously on different data items.

• Common in SIMD (Single Instruction, Multiple Data) architectures.

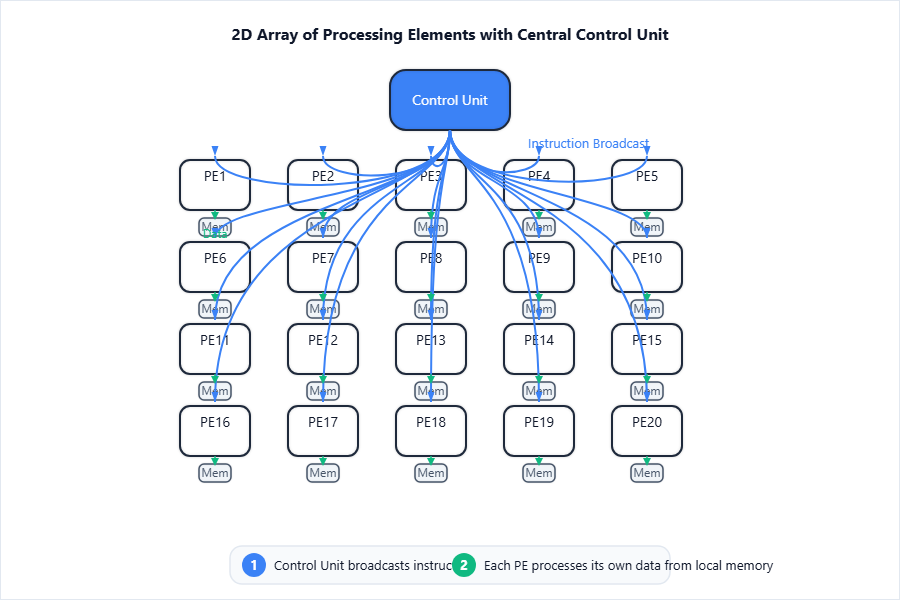

Array Processor Structure

• Shows how a single instruction is dispatched to many processing elements in parallel.

Difference Between Vector and Array Processors

Applications of Array Processing

• Image processing, real-time signal processing, neural networks, weather simulation.

8. RISC and CISC

RISC Architecture: Characteristics & Features

[!IMPORTANT]

RISC (Reduced Instruction Set Computer) is a CPU design philosophy that uses a small set of simple instructions for fast execution and efficient pipelining.

• Fixed instruction length, load/store architecture, more registers, simple addressing modes.

CISC Architecture: Characteristics & Features

[!IMPORTANT]

CISC (Complex Instruction Set Computer) is a CPU design philosophy with a large set of complex instructions that can execute multi-step operations in a single instruction.

• Variable instruction length, many addressing modes, fewer registers, complex decoding.

Comparison: RISC vs. CISC

Performance and Application Domains

• RISC: Embedded systems, smartphones, high-performance computing where speed/power efficiency is key.

• CISC: Desktop PCs, servers requiring compatibility and complex software support.

9. Study of Multicore Processor – Intel, AMD

Definition of Multicore Processors

[!IMPORTANT]

A multicore processor integrates two or more processing cores onto a single chip, allowing simultaneous execution of multiple threads or processes.

• Each core may have its own L1/L2 cache; they share higher-level memory/cache.

Overview of Intel Multicore Processors (Architecture Highlights)

• Advanced CPUs (e.g., Intel Core i7) use multiple cores, hyper-threading, shared Smart Cache, Turbo Boost, and integrated graphics.

• Emphasize high performance and energy efficiency.

Overview of AMD Multicore Processors (Architecture Highlights)

• Ryzen series uses “Zen” architecture, simultaneous multithreading (SMT), large L3 cache, and Infinity Fabric interconnect for flexible scaling.

• Focus on cost/performance and multi-threading.

Case Study Table: Intel Core i7 vs. AMD Ryzen

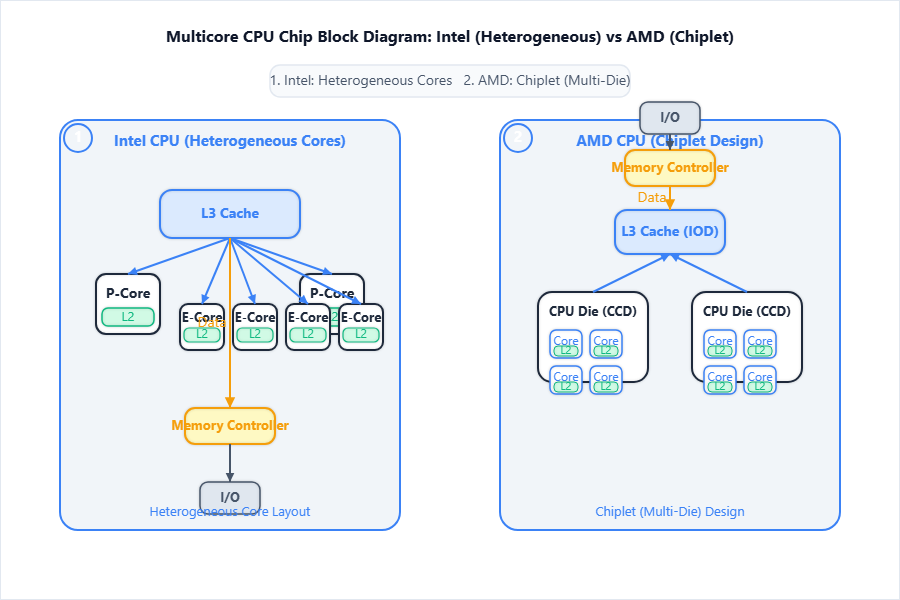

• Diagram highlights how modern CPUs organize multiple cores, caches, and buses on a chip.

Key Innovations and Features in Modern Multicore Designs

• Heterogeneous cores (Intel P-core/E-core), SMT (simultaneous multithreading), chiplet architecture, advanced power management (Dynamic Boost/SmartShift).

[!TIP]

To score best, always include formal definitions, cite at least one advantage/disadvantage, and draw/label requested diagrams in your answer sheet!
